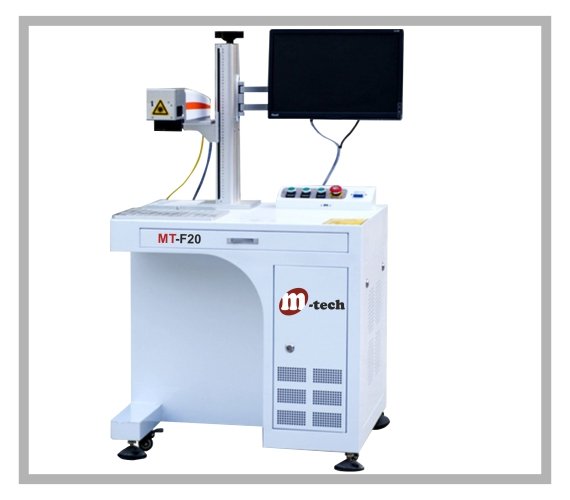

Importing and exporting a wide array of Engraving Machine
Standard Equipment
- Working Table : 2D
- Marking area: ( 110*110mm / 150*150mm / 200*200mm / 300*300mm )
- Laser type : fiber laser source (Raycus / IPG / MAX / JPT)
- Sino brand galvo head.
- F-theta lens: wavelength brand from Singapore.
- Control system: Beijing JCZ control system, EZCAD software
- Supported : Photoshop, Coraldraw, AI, PLT, DXF, BMP, DST, DWG, DXP ETC...
- Computer: Industrial
TECHNICAL PERAMETER
| Model | MT-F20 / MT-F30 / MT-F50 / MT-F60 / MT-F100 |
|---|---|
| Laser Power | 20W / 30W / 50W / 60W / 100W |
| Laser Wavelength | 1064nm |
| Laser Repetitive Frequency | 20-100KHz |
| Beam Quality(M2) | <2 |
| Adjustable Power range | 10-100% |
| Carving Range | 110*110mm / 150*150mm / 200*200mm / 300*300mm |
| Carving Line Speed | <7000mm/s |
| Min Line Width | 0.01mm |
| Min Character | 0.15mm |
| Repetitive Accuracy | ±0.001mm |
| Power Consumption | 0.5KW |
| Power Supply | AC 220V±10%/50Hz-60Hz |
| Cooling System | Build –in air Cooling |
| Operate System | WinXP,Win7,Win8 32 Bit |
APPLICATION
- It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marker, etc.
- Mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuit (IC), Electrical appliances, communications products tools, accessories, knives, eyeglasses and clocks, jewellery, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries
