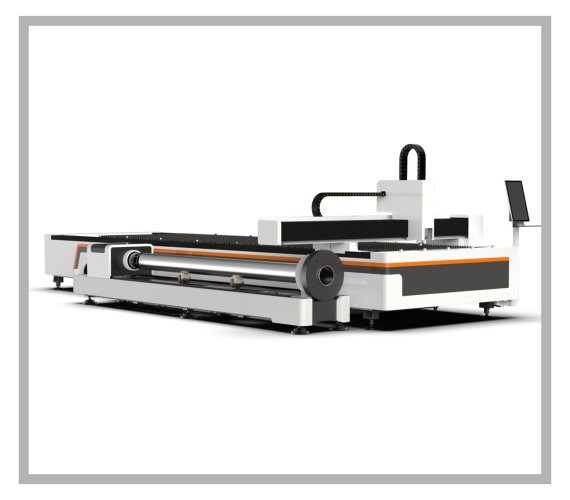

HT series products are mainly for customers who have both steel sheet and tube cutting needs. The sheet and tube cutting can be switched flexibly. It is a Multifunction economical and practical laser cutting equipment.
About Us
Started in the year of 2006, we "M Tech Laser India Pvt. Ltd." established ourselves as a prominent organization of the market in wholesale trading and importing and exporting a wide array of Engraving Machine.
About UsContact Info
- C-609, THE FIRST, NR. ITC NARMADA HOTEL, B/H. KESHAV BAUG PARTY PLOT, VASTRAPUR, AHMEDABAD-380015
- 079-48981589
- mtechlasersolution@gmail.com
Importing and exporting a wide array of Engraving Machine
PRODUCT FEATURES
- Dual-drive gantry architecture integrated style cast aluminum alloy beam,Combine excellent heat treatment technology and machining process technology, Ensure machine rigidity and long-term stable use
- Integrated connection of main bed and auxiliary bed,Free and flexible switching of sheet and tube cutting.Can satisfy customers' steel sheet and pipe cutting needs to the greatest extent.
- Imported servo motor drives precision rack and pinion transmission, Effectively ensure the cutting accuracy and cutting efficiency of the whole machine.
- The tube cutting part can realize 6-meter tube cutting and 3-meter tube cutting.
| MODEL | MT-F1530HT | MT-F1545HT | MT-F2040HT | MT-F2060HT |
|---|---|---|---|---|
| Cutting range | 1500*3000mm | 1500*4500mm | 2000*4000mm | 2000*6000mm |
| Laser power | 1000w-4000w | |||
| Linkage speed | 120m/min | |||
| Acceleration | 1.5G | |||
| Clamping Range | 20-220 mm | |||
| Processing length of the pipe | 3M/6M | |||
| Max load of pipe | 200kg (< 30kg/m) | |||
APPLIED MATERIAL
It specializes in cutting 0.5-30mm carbon steel, 0.5-14 mm stainless steel, galvanized and electrolytic plates, 6mm aluminum alloy, 0.5-10mm brass and red copper ect.
