H series fiber laser cutting machine adopts imported servo motor and gear rack, which effectively ensures the processing speed and accuracy of the machine. It is an economical and practical fiber laser cutting equipment with superior price and stable performance.
About Us
Started in the year of 2006, we "M Tech Laser India Pvt. Ltd." established ourselves as a prominent organization of the market in wholesale trading and importing and exporting a wide array of Engraving Machine.
About UsContact Info
- C-609, THE FIRST, NR. ITC NARMADA HOTEL, B/H. KESHAV BAUG PARTY PLOT, VASTRAPUR, AHMEDABAD-380015
- 079-48981589
- mtechlasersolution@gmail.com
Importing and exporting a wide array of Engraving Machine
PRODUCT FEATURES
- Excellent beam quality, small focus spot, higher working efficiency and better processing
- It adopts traditional and stable gantry structure, high-strength one-piece aluminum alloy beam, combined with excellent heat treatment and machining technology to ensure long-term stability:
- The whole machine adopts imported servo motor, high-density molding machine dual drive rack and pinion transmission
- system to ensure the accuracy and processing efficiency requirements in the cutting process; Mature processing system, convenient operation interface, real-time feedback of processing status to ensure orderly
| MODEL | MT -F1530H | MT-F1545H | MT-F2040H | MT-F2060H |
|---|---|---|---|---|
| Cutting | 1500*3000mm | 1500*4500mm | 2000*4000mm | 2000*6000mm |
| Laser power | 1000w-4000w | |||
| Linkage speed | 120m/min | |||
| Acceleration | 1.5G | |||
| Positional accuracy | ± 0.03 mm | |||
| Re-Positional accuracy | ± 0.02 mm | |||
| Commodity | Model | Power (W) |
Working Size (MM) |
|---|---|---|---|
|

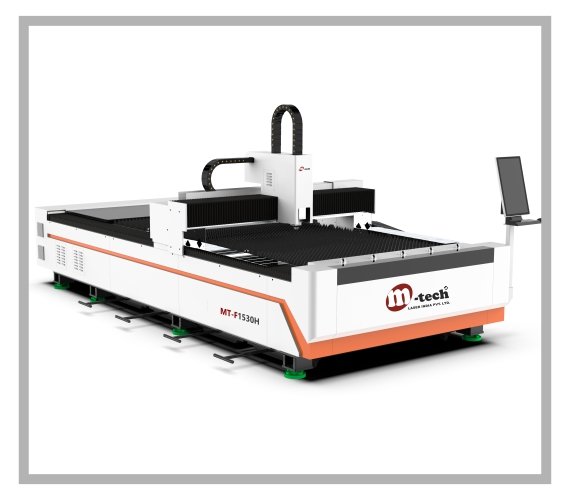

Fiber Laser Cutting Machine MT-F1530H with
|
MT-F1530H | 1000W 1500W 2000W |
1500*3000mm |
APPLIED MATERIAL
It specializes in cutting 0.5-30mm carbon steel, 0.5-14mm stainless steel, galvanized and electrolytic plates, 6mm aluminum alloy, 0.5-10mm brass and red copper ect.
Technical Data
| Woking area (LW) | 1500x3000mm | Floor size | Refer To Layout |
| X axis travel distance | 1510mm | Main body dimension | 4670 x 2266 x 1750 mm |
| Y axis travel distance | 3030mm | CNC system | Cypcut |
| Z axis travel distance | 120mm | Screen | 19''LC |
| X/Y axis geometry positoning accuracy | ± 0.03mm | Worktable max. weight capacity | 1000kg |
| Maximum Linkage Spee | 140m/min | voltage | 380V |
| X/Y axis max. acceleraton | 1.5G | Overall installe electricity capacity | <20KW |
| Frequency | 50Hz | Phase | 3 |
| Cutting parameter | ||
|---|---|---|
| Material | 1000 W | Auxiliarygas |
| SS | max 5mm(≤ 4mm is best effect ) | Nitrogen |
| CS | max 12mm(≤ 10mm is best effect ) | Oxygen |

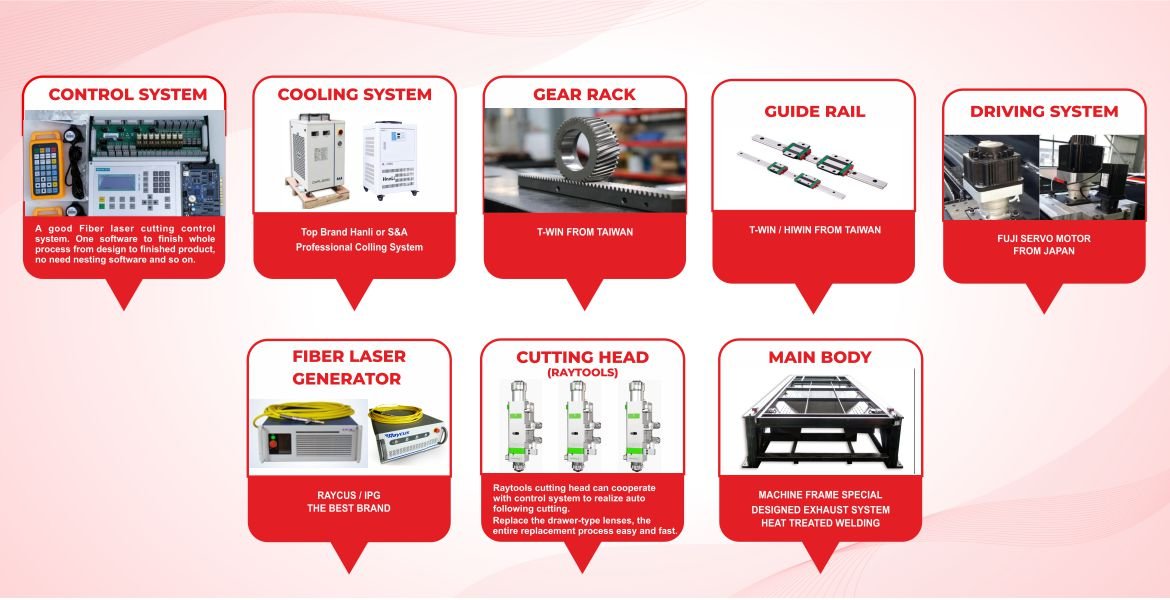

MAIN CONFIGURATION
MACHINE WORKING CONDITIONS
| No. | Item | Parameters | Unit |
|---|---|---|---|
| 1 | Power | 380 / 50 | V/Hz |
| 2 | Required Distribution Capacity | 20 (exclusive air compressor) | kVA |
| 3 | Power Stability | ± 10 | V/Hz |
| 4 | Cutting carbon steel with | oxygen Purity ≥ 99.99 | % |
| 5 | Cutting stainless steel with nitrogen | Purity ≥ 99.99 | % |
| 6 | Water Chiller Consumption (Distilled water) | 20 to 25 | L |
| 7 | Ground Resistance | ≤ 4 | % |
| 8 | Environment Temperature | 5-40 | % |
| 9 | Environment Humidity | < 70 | % |
| 10 | Installation Site Requirements (Foundation design for conference) |
Site concrete foundation thickness is larger than 250mm (or carrying five tons/square meter basis foundation) The flatness is less than 10mm / Every 3 meters. The installation site is recommended to avoid punch within 20 meters around | |
GROUND PLOT REQUIREMENT
| Item | Parameters | |||
|---|---|---|---|---|
| Gas | Gas | Oxygen | Nitrogen | Air |
| Purity | 99.95% | 99.99% | Free of waer and oil | |
| Maximum Pressure | 10Bar | 25Bar | 15Bar | |
Notes : If using air as the cutting gas, the compressed air must be free of water and oil, othwrwise, it will damage the optical lens and protective lenses, reduce cutting quality and lifetime of the cutting head.

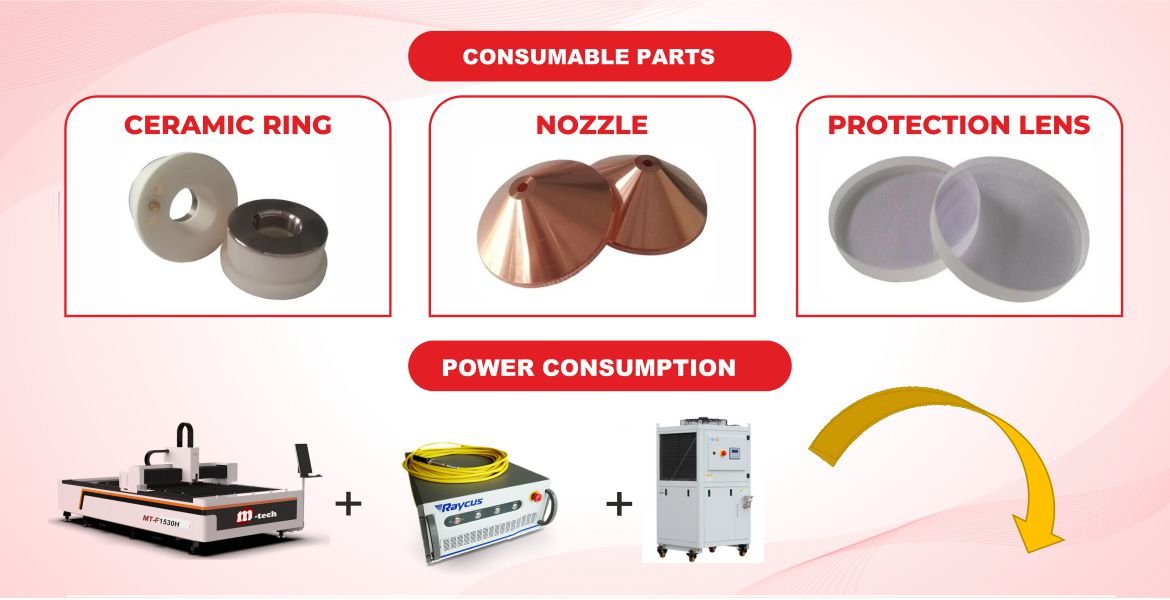

Consumable Parts
| 3015 Machine frame | Laser source | Chiller | Total (Max. power consumption) |
| 6KW | 1KW*4=4KW | 2.2KW | 12.2KW/H |
INDUSTRIAL APPLICATIONS
Aerospace, Trains, Advertisement, Agricultural / Packing Machinery, Precision Electronic Products and other metal Products.
