Importing and exporting a wide array of Engraving Machine
TECHNICAL SPECIFICATIONS
| SPECIFICATION | Techanical Parameter |
|---|---|

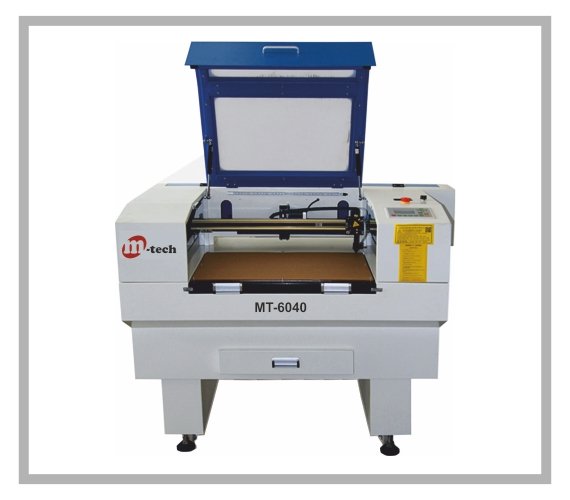

| MODEL NAME | MT-6040 |
| WORKING AREA (IN MM) | 600 X 400 MM |
| LASER TUBE | RECI BRAND T1 80W |
| CHILLER | Model : Cw3000 S&A BRAND |
| BLOWER (AIR EX) | 550W IMPORTED |
| COMPRESSOR | 135W IMPORTED |
| BED STRUCTURE | HONEYCOMB / 12 MM NARROW GAP STRIP BED |
| MOTOR & DEIVE | LEADSHINE |
| PROTECTION | INBUILT WATER SENSOR |
| MOVING STRUCTURE | INNER GUIDE MECHANISM SYSTEM |
| BELT | TAIWAN 3M IMPORTED |
| LENS | IMPORTED AMERICAN II IV-20MM |
| MIRROR | IMPORTED AMERICAN II IV-25MM |
| WORKING SPEED | ≤500MM/S |
| ENGRAVING SPEED 30 M/MIN | 500 MM/S |
| CUTTING SPEED 18 M/MIN | 300 MM/S |
| REPEAT ACCURACY | ± 0.05MM |
| WORKING VOLTAGE | 220 ± 10% 50Hz (60Hz) |
| OPERATING TEMPERATURE | 5C-40C HUMIDITY 5% 80% CLEAN & DUST PROOF |
| GRAPHIC FORMAT SUPPORTED | AI, DXF, PLT, DST, DSB, SVG, PDF, BMP, JPEG, GIF ETC... |
| COOLING MODE | WATER COOLING AND PROTECTION SYSTEM |
| WORKING VOLTAGE | AC230V 50-60Hz |
| LASER TYPE | Co2 LASER TUBE |
Noticed : All models have standard an advanced configuration, please inquire the sales person for details.
co2 Laser Cutting Machine by M-tech Laser offers a wide variety of Engraving and Cutting options on different types of materials like Acrylic, MDF, Paper, Fabrics, Leathers, Wood, Plastics, etc with high speed and best quality engraving and cutting accuracy. Applications are in Electronics Engraving, Wood Engraving and Cutting, Marble and stone Etching, Glass Etching, Corporate Giveaways, Signage, Wedding Memorabilia, Nameplates and Desk sets, Appliques, Toys and games, wooden models, ploto albums, holiday decorations, Laser cut cards and invitations, custom jewelry, corporate and sporting awards, acrylic plaques, architectural models, Photo Engraving, Logo Engraving on parts, Trophy and corporate gift industries, Fabrics and textiles Industries, Leather industries, shoes industries, gift MDF boxes, etc.
STANDARD ACCESSORIES
