Computer embroidery design is so popular worldwide because of its high productivity and perfect decorative effect on garment, garment accessories, shoes, hats, home textiles, etc.. The only issue remaining is how to cut out the embroidered parts. Manually cutting is too slow, inconsistent and labour intensive. Big vision laser cutting machine made by MTech Laser, automates the process of cutting out embroidered pieces of fabric or textile both quickly and accurately, automatically compensating for any distortions or stretches that occur in unstable or stretchy textiles ,wedding dress.
About Us
Started in the year of 2006, we "M Tech Laser India Pvt. Ltd." established ourselves as a prominent organization of the market in wholesale trading and importing and exporting a wide array of Engraving Machine.
About UsContact Info
- C-609, THE FIRST, NR. ITC NARMADA HOTEL, B/H. KESHAV BAUG PARTY PLOT, VASTRAPUR, AHMEDABAD-380015
- 079-48981589
- mtechlasersolution@gmail.com
Importing and exporting a wide array of Engraving Machine

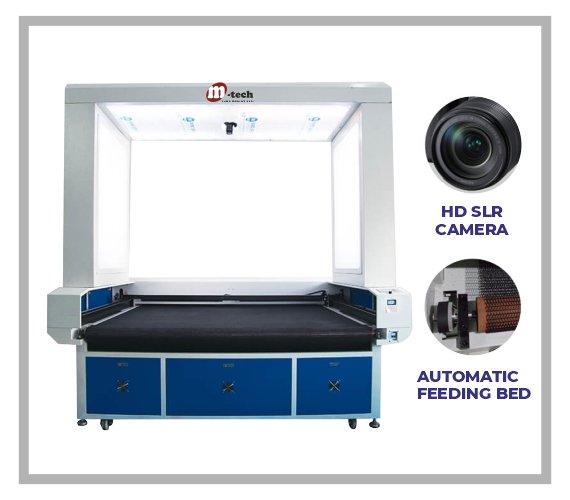

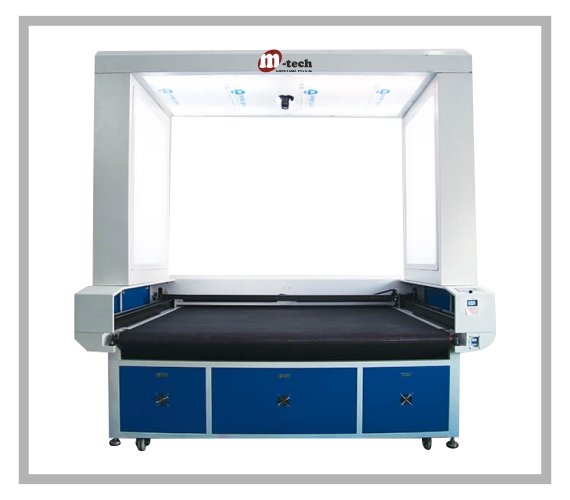

TECHNICAL SPECIFICATIONS
| SPECIFICATION | Techanical Parameter |
|---|---|
| MODEL NAME | MT-1610TFHS |
| WORKING AREA (IN MM) | 1600 X 1000 MM |
| LASER TUBE | 100W |
| CHILLER | Model : Cw5000 S&A BRAND |
| BLOWER (AIR EX) | 550W IMPORTED |
| COMPRESSOR | 135W IMPORTED |
| BED STRUCTURE | AUTO FEEDING |
| MOTOR & DEIVE | LEADSHINE |
| PROTECTION | INBUILT WATER SENSOR |
| MOVING STRUCTURE | INNER GUIDE MECHANISM SYSTEM |
| BELT | TAIWAN 3M IMPORTED |
| LENS | IMPORTED AMERICAN II IV-20MM |
| MIRROR | IMPORTED AMERICAN II IV-25MM |
| WORKING SPEED | ≤500MM/S |
| ENGRAVING SPEED 30 M/MIN | 500 MM/S |
| CUTTING SPEED 18 M/MIN | 300 MM/S |
| REPEAT ACCURACY | ± 0.05MM |
| WORKING VOLTAGE | 220 ± 10% 50Hz (60Hz) |
Noticed : All models have standard an advanced configuration, please inquire the sales person for details.
co2 Laser Cutting Machine by M-tech Laser offers a wide variety of Engraving and Cutting options on different types of materials like Acrylic, MDF, Paper, Fabrics, Leathers, Wood, Plastics, etc with high speed and best quality engraving and cutting accuracy. Applications are in Electronics Engraving, Wood Engraving and Cutting, Marble and stone Etching, Glass Etching, Corporate Giveaways, Signage, Wedding Memorabilia, Nameplates and Desk sets, Appliques, Toys and games, wooden models, ploto albums, holiday decorations, Laser cut cards and invitations, custom jewelry, corporate and sporting awards, acrylic plaques, architectural models, Photo Engraving, Logo Engraving on parts, Trophy and corporate gift industries, Fabrics and textiles Industries, Leather industries, shoes industries, gift MDF boxes, etc.
Applicable Materials
Fabric, Plastic, non-woven cloth in Garment and toy Industries. Also inclusive of precise cut to non-metal materials, like Acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries. Embrodery Border Lace cutting Digital lace Cutting machine
