Importing and exporting a wide array of Engraving Machine
FEATURES
- The Machine Welding Is Made By Welding Aparatus And Welding Robots.
- After The Welding, We Make Stress Relief Process By Vibration System.
- After The Stress Relief Process Machine Frame Goes To Cnc 5 Axes Machining Centers For Accuracy.
- All Reference Surfaces And Connection Holesare Machined.
- By All This Processes Machine Frame Sensivity Is Protected For A Long Life Time.
TECHNOLOGIES
| No. | Name | Unit | 125T/3200 |
|---|---|---|---|
| 1 | Bending Pressure | KN | 1250 |
| 2 | Bending Length (A) | mm | 3200 |
| 3 | Column Distance (B) | mm | 2700 |
| 4 | Throat Depth(D) | mm | 400 |
| 5 | Slider Stroke(C) | mm | 200 |
| 6 | Max Opening Height(E) | mm | 420 |
| 7 | Y1,Y2-Axis Downward Speed | mm / sec | 150 |
| 8 | Y1,Y2-axis Back Stroke Speed | mm / sec | 150 |
| 9 | Y1,Y2-Axis Precision | mm/m | 0.01 |

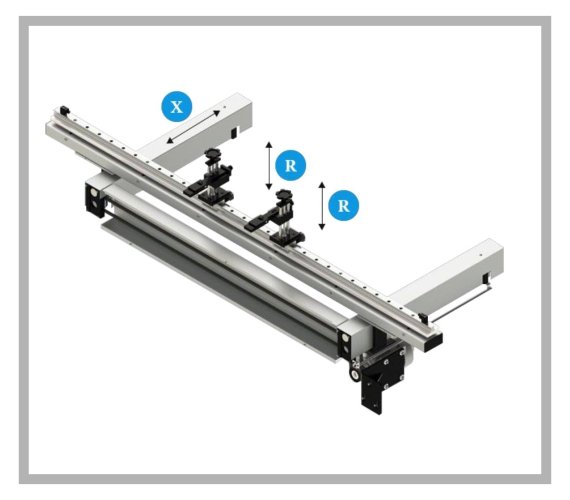

| 10 | X-Axis Max Distance | mm | 500 |
| 11 | Workpiece Linearity | mm/m | ≥ 0.3 |
| 12 | Backgauge Precision | mm/m | 0.05mm |
| 13 | Sliding Front Supporting Arms | Pcs | 2 |
| 14 | Back stopper | Pcs | 3 |
| 15 | V-Axis Crowning Method ( Anti-deflection ) | - | Mechanical Crowning |
| 16 | CNC Control Axes | 3+1 Axes | Y1+Y2+X+V Crowning |
| 17 | Main Motor Power | Kw | 11 |
| 18 | CNC System | - | DA58T |
| 19 | Length* Width* Height | mm | 3500*1580*2400 |
| 20 | Weight | T | 9.5 |
STANDARD CONFIGURATION LIST
| No. | Name | Model/Manufacturer | Others |
|---|---|---|---|
| 1 | CNC System | DA58T Controller - Holland DELEM | |
| 2 | Electrics | Schneider - France | Travel switch & Limit Switch |
| 3 | Main Motor | Siemens -Germany/wannan-china | |
| 4 | Back Stopper, Timing Belt, Timing Pulley | Taiwan | Positioning Control Guaranteed Precision |
| 5 | Servo Motor | Estun | Positioning ControlGuaranteed Precision |
| 6 | Servo Drive | Estun | Positioning ControlGuaranteed Precision |
| 7 | Pedal Switch | Standard | |
| 8 | Hydraulic System | Bosch Rexroth - Germany | |
| 9 | Sealing Ring | MERKEL - Germany | |
| 10 | Oil Tube Connector | EMB - Germany | |
| 11 | Front Safeguard | Produced by M-tech | |
| 12 | Back Safeguard | Produced by M-tech | |
| 13 | Die | One Set of standard Dies | |
| 14 | Backgauge | Ball Screw and Polished Rod, Linear Guide Rail-Taiwan, HIWIN | |
| 15 | Clamp | Quick Clamp | |
| 16 | Deflection Crowning | Mechanical Crowning | |
| 17 | Grating Ruler | FAGOR - Spain | |
